Pitcher Problem Solver - Pouring Data Tree
The Pouring Data Structure Tree, Solution Path Through Nodes
Given pitchers of sizes 3 liters and 7 liters, walk through the pouring data structures in a tree to find the solution of 5 liters. Here is the solution provided by the solver program.
![]() |
Now let's walk through the tree, one level down for each pouring step.
- Coming off the root node with both pitchers empty, fill pitcher two from the river. The pouring data for this level-1 node is [[0 2] 0 7].
- Coming off the level-1 node with pitcher one empty and pitcher two containing 7 liters , fill pitcher one from pitcher two. The pouring data for this node is [[2 1] 3 4].
- Coming off the level-2 node with pitcher one containing 3 liters and pitcher two containing 4 liters, empty pitcher one into the river. The pouring data for this level-3 node is [[1 0] 0 4].
- Coming off the level-3 node with pitcher one empty and pitcher two containing 4 liters, fill pitcher one from pitcher two. The pouring data for this node is [[2 1] 3 1].
- Coming off the level-4 node with pitcher one containing 3 liters and pitcher two containing 1 liter, empty pitcher one into the river. The pouring data for this level-5 node is [[1 0] 0 1].
- Coming off the level-5 node with pitcher one empty and pitcher two containing 1 liter, fill pitcher one from pitcher two. The pouring data for this node is [[2 1] 1 0].
- Coming off the level-6 node with pitcher one containing 1 liter and pitcher two empty, fill pitcher two from the river. The pouring data for this node is [[0 2] 1 7].
- Coming off the level-7 node with pitcher one containing 1 liter and pitcher two containing 7 liters, fill pitcher one from pitcher two. The pouring data for this node is [[2 1] 3 5].
Here is the tree with the path and concerned nodes highlighted for the first six steps.
![]() |

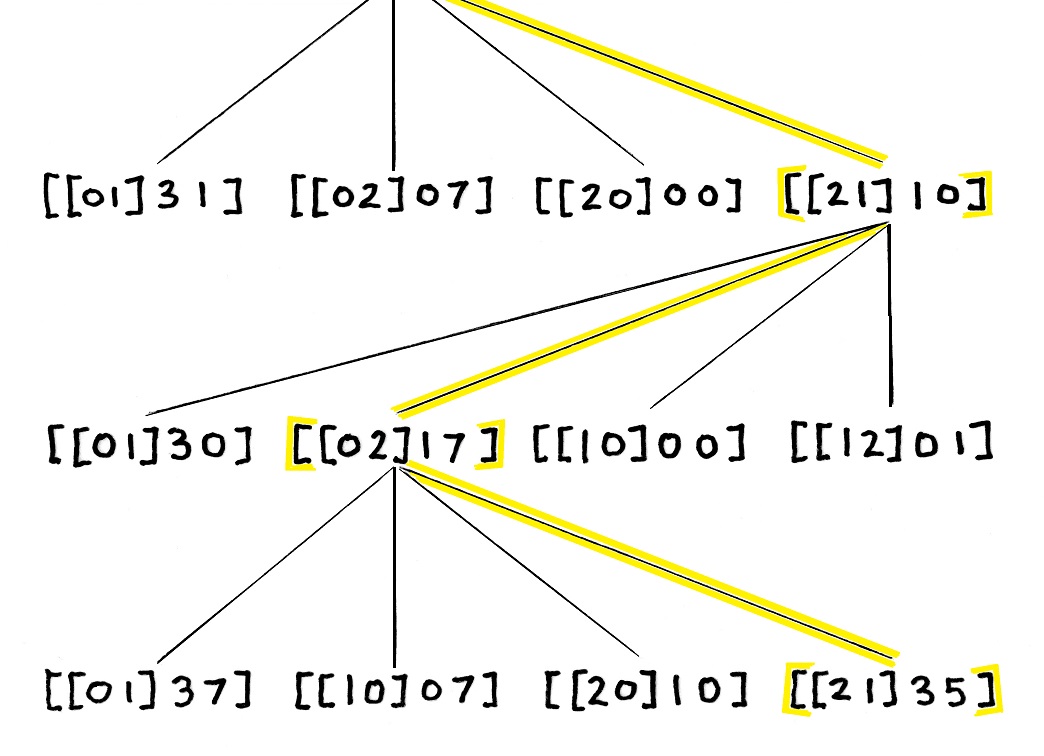

Here are the last three levels of a tree with the path and concerned nodes highlighted for steps six through eight.
![]() |
